Industrial X Ray Equipment

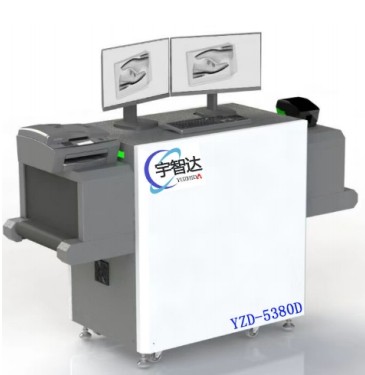

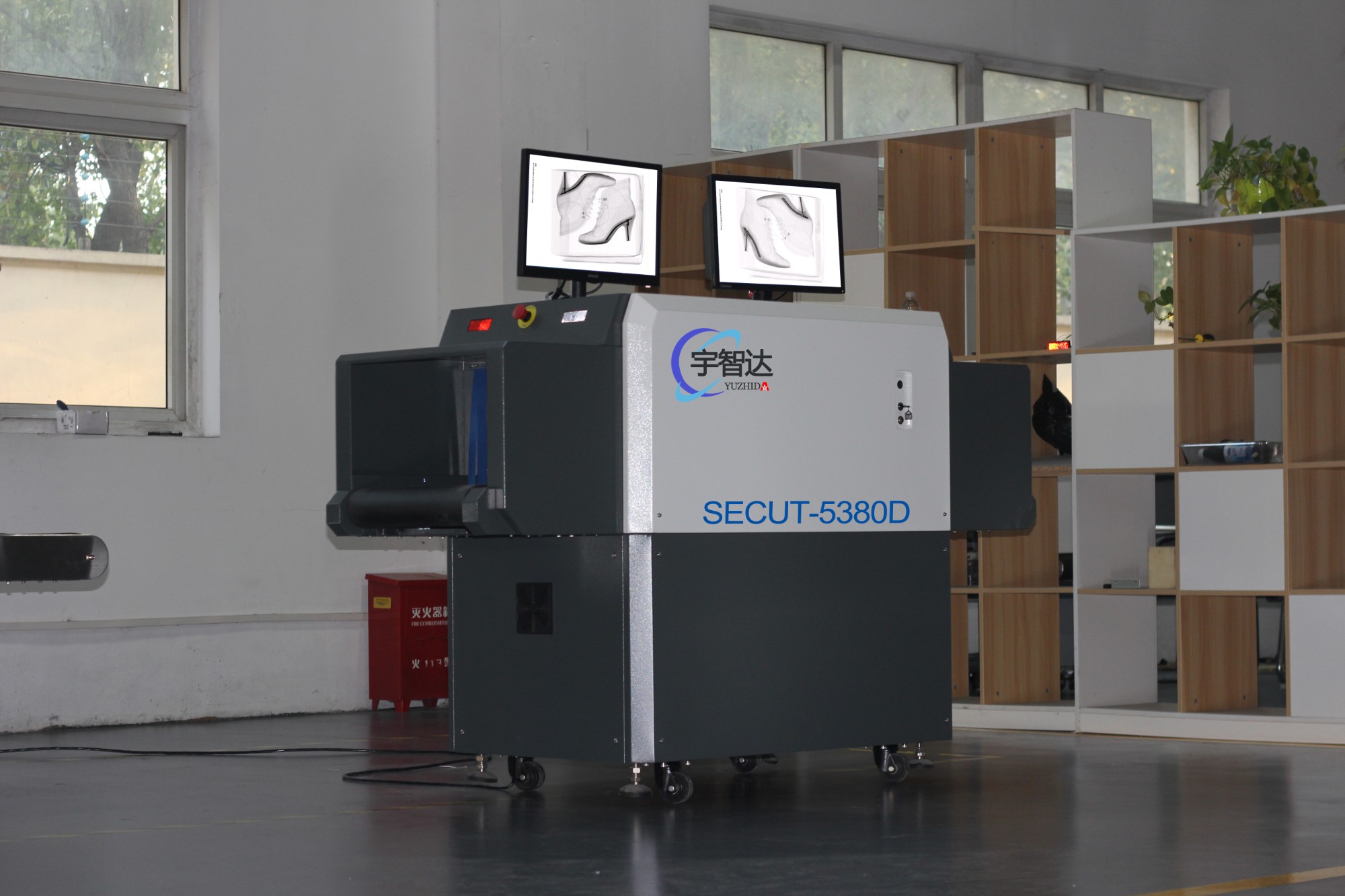

SECUT-5380D X Ray detection equipment uses a 0.8MM high-performance detector and Dual Generators, which can detect 0.3MM metal wires, and the image has no dead spots and the image is clearer.

Production Advantage:

High Energy X-ray (50-80kv adjustable, 1.2ma)

Dual high-energy ray Generators ensure clear imaging of thick metal objects

Inspection Range

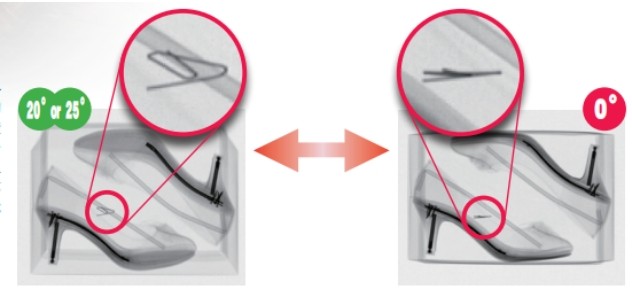

2 L-shaped Detection Box, the internal inspection range is expanded, and there are no blind spots in the 2-angle pictures

X Ray Generator System

The external oil pump circulates heat dissipation to ensure continuous 24-hour operation and uninterrupted operation.

Technical:

* Tunnel Size: 510*305(mm)

* Dimensions: 1940mm(L) * 790mm(W) * 1209.5mm(H)

* Conveyor Speed: 0.2-0.6m/s adjustable

* Detection Accuracy: Line resolution 0.3mm (standard) / 0.2mm (typical)

* Conveyor Height: 640.3mm

Function:

* Black and white, reverse image, pullback, amplification, grayscale continuous scanning, etc. Multiple USB ports;

* Inspection quantity management function: management of inspection quantity, defective quantity, and progress;

* Report function: record customer name, product name, size, qualified or not;

* Continuous inspection mode: 7600 boxes of short boots will be inspected within 8 hours;

* Automatic one-key shutdown function: only one key is needed to turn on and off the machine;

* Number of pictures saved: 2 million photos can be saved (stored in different formats such as JPG and BMP)

* Picture/barcode printing function: real-time printing

* Detection system: Capacitive integration technology, low noise, not afraid of hot flashes, ensuring smooth and stable images with clear edges

*Image processing: tomography technology, entire image output (improves efficiency, sees clearly at one time),

* Image management: NG calibration, special folder storage after description of unqualified products (named by customers themselves), different customers, different operators, save their own folders

Application:

Shoe Factories, Inspection Companies, Clothing Factories, Leather Factories, etc.
